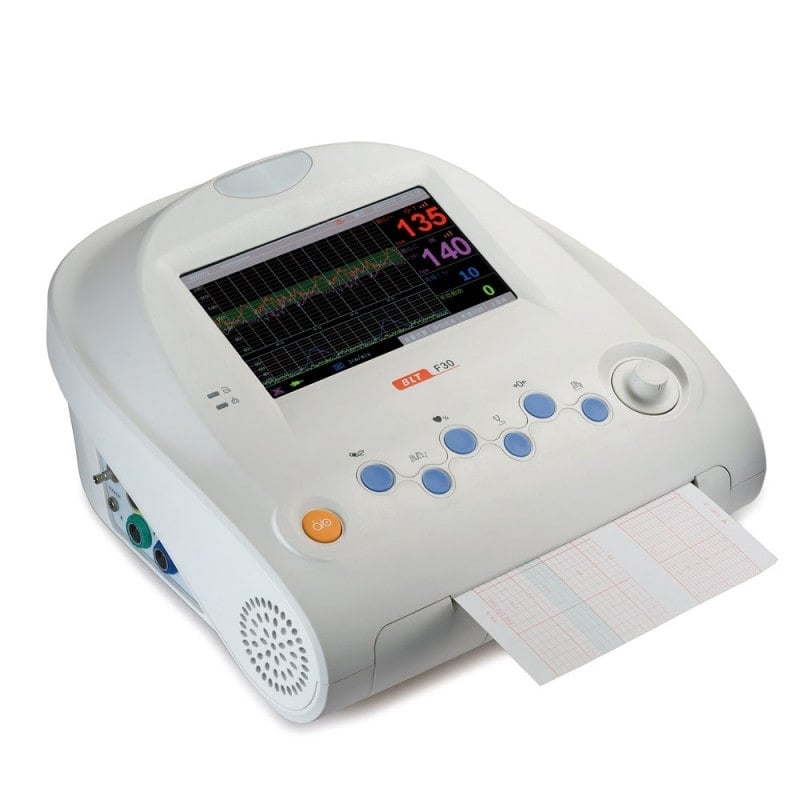

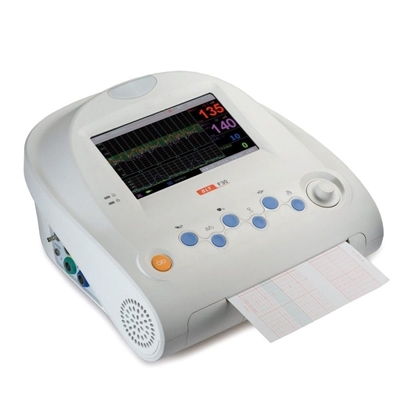

F30 Fetal Monitor Standard (without twins function)

Description

The Fetal Monitor F30 by Biolight is a device for professional fetal CTG monitoring by gynaecologists and obstetricians. In addition to the fetal heart sounds, fetal movements and contractions can also be monitored with the portable monitor.

The most important data of the expectant mother (age, name, week of pregnancy, etc.) can be set directly on the monitor. The integrated printer allows the monitoring results to be printed out immediately - the printout is made on special paper (available separately as an accessory).

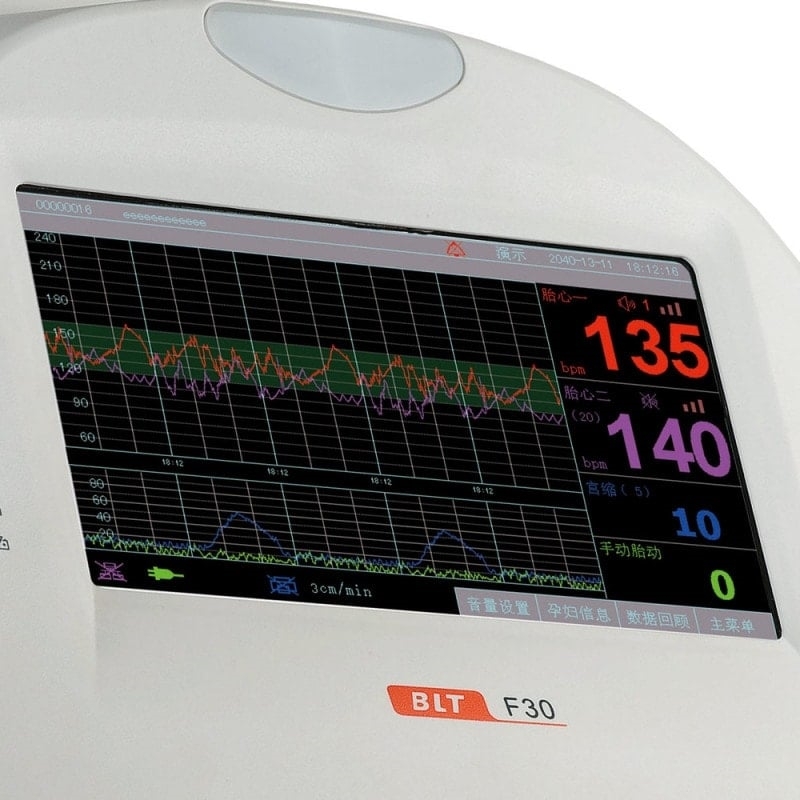

The 7-inch colour display clearly shows not only the CTG curve, but also date, time and battery level. Audible and visual alarms warn of critical values - the parameters can be set by the user on the unit itself.

The Biolight CTG unit F30 is available in the standard version or with the twin function, which also allows monitoring of FHR, Toco and FM in a twin pregnancy.

The F30 Fetal Monitor is used to monitor the following parameters

• Fetal heart rate (FHR)
• Contractions (Toco)
• Fetal movements (FM)

Product Details

• Fetal Monitor
• Model: F30
• Manufacturer: Biolight
• CTG device
• Compact, lightweight monitor
• Safe ultrasonic measurement method
• For measuring the fetal heart rate, contractions and fetal movements
• Optionally also available as twin fetal monitor
• 7 inch TFT LCD screen (colour display with a resolution of 800 x 480)
• Tabular and graphical representation of the measured values
• Programmable alarm function (visual and acoustic)
• Warning for incorrect transponder placement and abnormal fetal heart rate
• Event marker, MFM (Manual Button Marking)
• Automatic fetal movement recognition (AFM: Automatic fetal movement)
• Integrated thermal printer (resolution: 8 Pixel/mm ; paper dimensions: 152 x 13.5 mm)
• With internal memory for up to 24 hours of data recordings
• Rechargeable lithium-ion battery for approx. 4 hours of wireless operation
• Portable due to integrated handle
• Warranty on the device: 1 year ( 6 months on accessories)

Technical Details

• Adjustable screen brightness
• Volume adjustable
• Information about the mother can be set on the screen (incl. name, age, week of pregnancy)
• With battery level indicator
• Measuring range FHR: 50 - 210 beats/minute
• Measuring range TOCO: 0 - 100
• FM intensity measuring range: 0 - 40 % (relative range)
• Dimensions: 32.2 x 29.5 x 14.4 cm (W x H x D)
• Weight: approx. 5 kg
